Hunter ICC2 Modular Controller Indoor/Outdoor | Choose Your Selection



• Number of stations: Conventional: 8 to 38 (plastic), 8 to 54 (metal and pedestals)
• With two-wire EZDS: up to 54 (all enclosure options)
• 4 independent irrigation programs (8 start times each) allow for customized scheduling
• 12-hour maximum station run time provides flexibility for low-flow zones
• Any 2 programs can operate simultaneously, providing more efficient watering
• 1 sensor input available for use with Solar Sync® or any Clik sensors
• 1 flow sensor input available with WIFIKIT, LANKIT, and CELLKIT Centralus communication modules
• 1 P/MV output for pump start relay and master valve activation
• Backward compatibility to original ICC controllers allows for quick updates to older systems
• Forward compatible with HCC Controllers and Hydrawise Software using a convenient upgrade kit

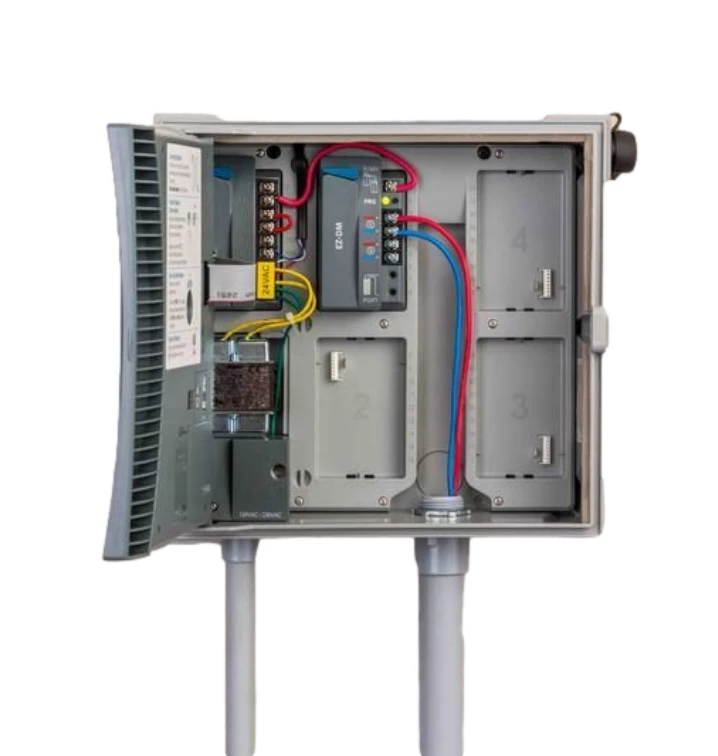

The base model of ICC2 is supplied with an ICM-800 station output module. The capacity of the controller is increased when new station modules are installed and recognized.

ICC2 is a value-packed, light-to-mid-size commercial irrigation controller that delivers more than you expect, just like its famous predecessor. It is designed to control larger projects (up to 54 stations) and offers the water savings you expect from a Hunter controller.

ICC2 can run any two of its four automatic programs simultaneously, providing flexible and efficient watering options. The ICC2 face pack and station output modules are also compatible with original ICC controllers, with upgrade kits available for retrofitting legacy ICC systems.

ICC2 controllers are compatible with Centralus Irrigation Management Software, with three connectivity methods for various applications (Wi-Fi, Ethernet, and 4G LTE Cellular). When adding Centralus to standalone ICC2 systems, users can also enable critical flow monitoring capabilities using HFS or HC Flow Meter sensors.

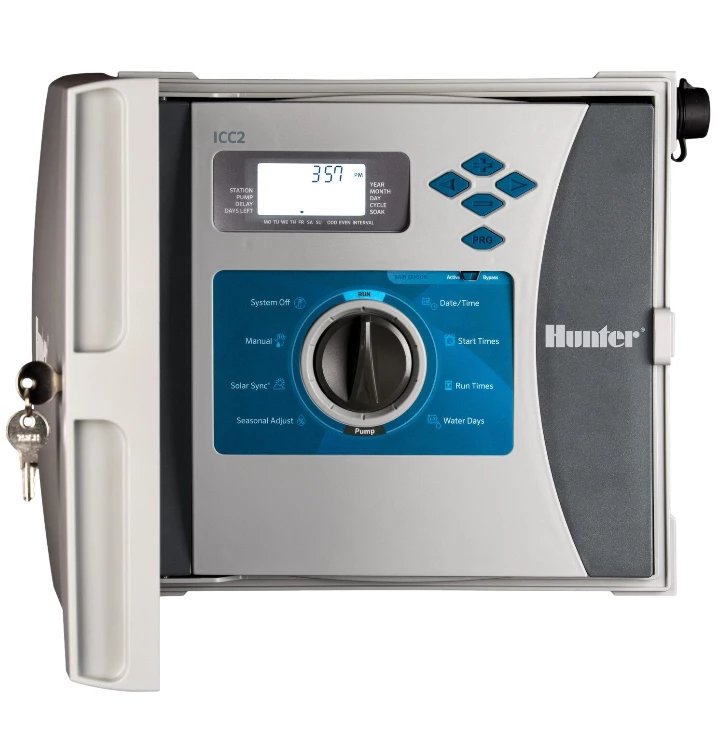

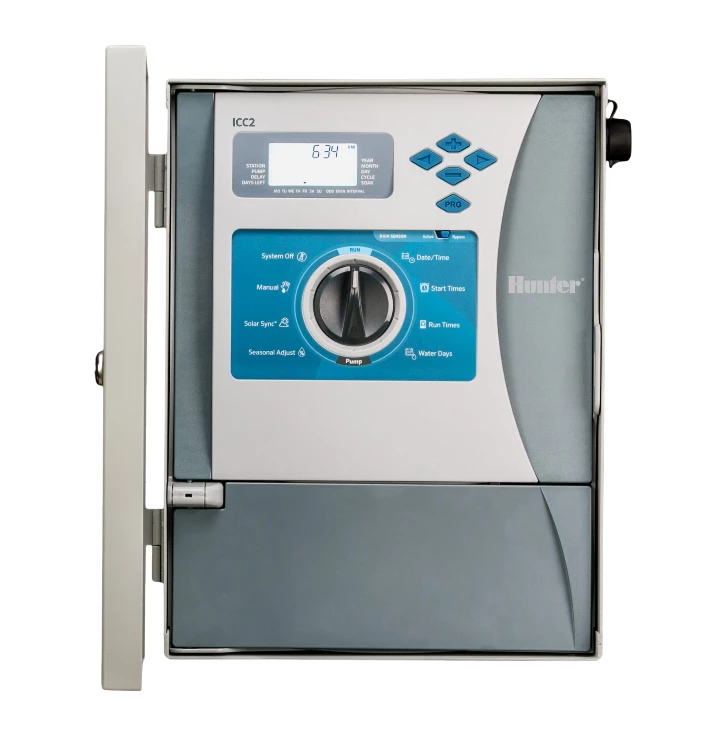

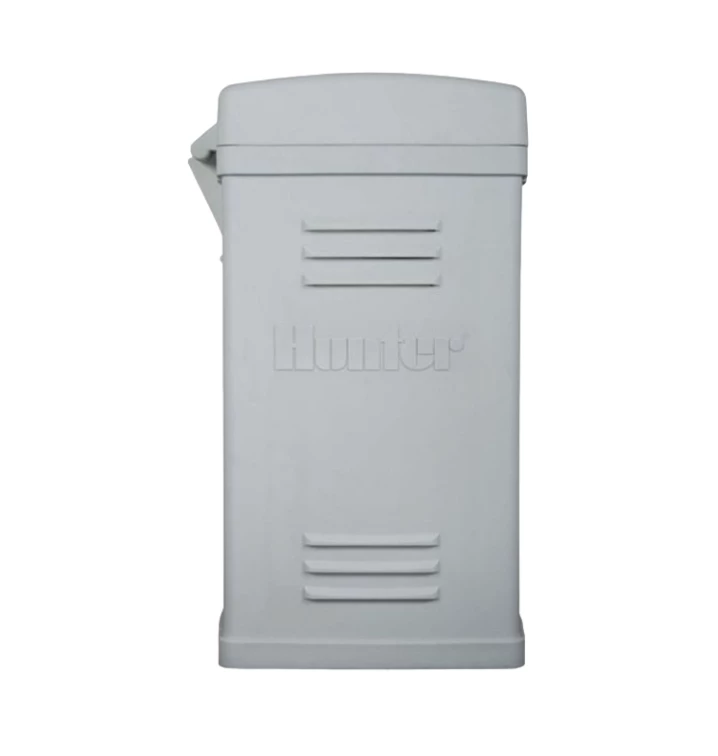

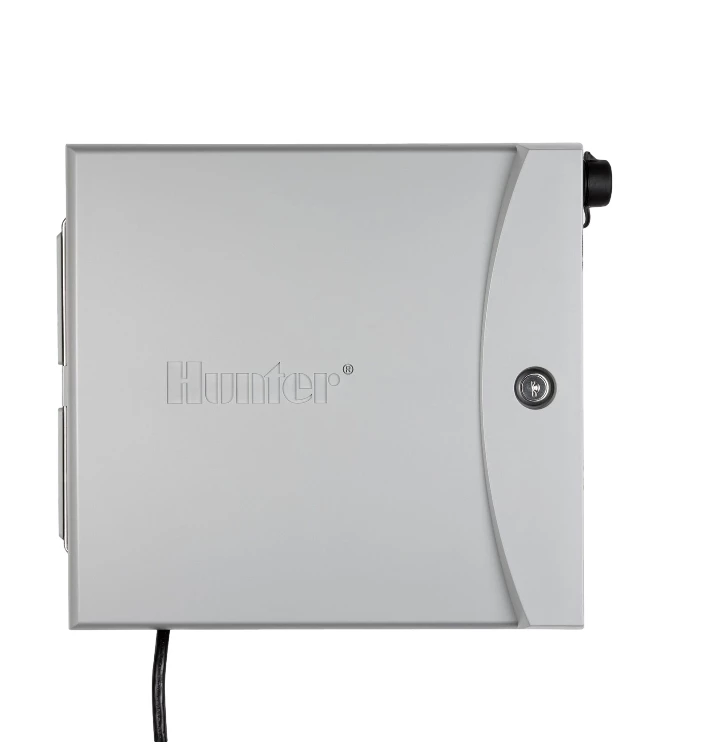

ICC2 controllers are prewired for remote control with Hunter ROAM and ROAM XL transmitters, and have built-in Solar Sync® for automatic water savings, with an optional sensor. ICC2 is available as a plastic outdoor wall mount, metal outdoor wall mount, stainless steel wall mount, or plastic pedestal. Optional matching metal pedestals in gray or stainless are also available.

Standard ICM station modules are available in 4, 8, and 22 station sizes (ICM-400, ICM-800, ICM-2200). These may be added at any time after initial installation.

ICM-400

• 4-Station plug-in module with enhanced surge suppression

ICM-800

• 8-station plug-in module with enhanced surge suppression

ICM-2200

• 22-station expansion module (one per controller) with enhanced surge suppression

WIFIKIT

• Wi-Fi Communication Module and Flow Monitoring for ICC2 Controllers

LANKIT

• Ethernet Communication Module and Flow Monitoring for ICC2 Controllers

CELLKIT

• Cellular Communication Module (4G LTE) and Flow Monitoring for ICC2 Controllers; service plan required
