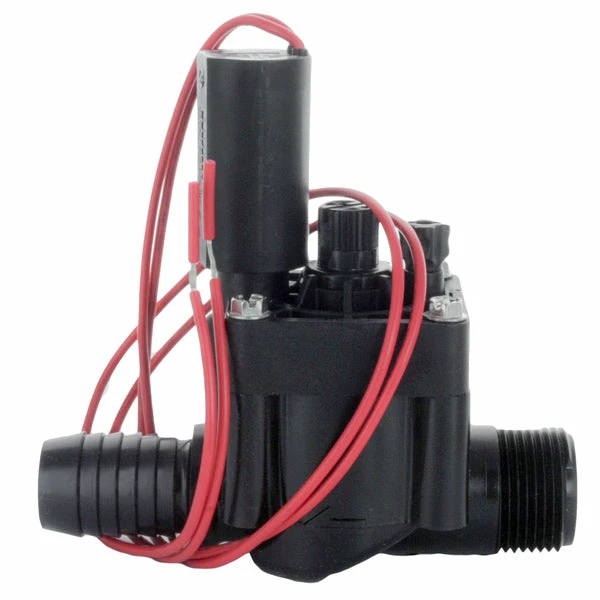

Hunter 1″ PGV Valve | Select Your Model

• Flow: 0.2 to 40 GPM
• Recommended pressure range: 20 to 150 PSI
• Temperature rating: 150°F
• 24 VAC solenoid
• 350 mA inrush, 190 mA holding, 60 Hz
• 370 mA inrush, 210 mA holding, 50 Hz
• External/internal manual bleed allows for quick and easy activation at the valve
• Double-beaded diaphragm seal design ensures leak-free performance
• Captive bonnet screws eliminate the possibility of lost parts during disassembly
• Triple-tool bonnet screws are compatible with standard or Phillips screwdrivers as well as a nut driver
• Jar-top models provide easy access without tools
• Encapsulated solenoid with a captive plunger used on every Hunter valve provides hassle-free service
• Flow control maximizes efficiency and prolongs the life of the system
• Warranty period: 2 years

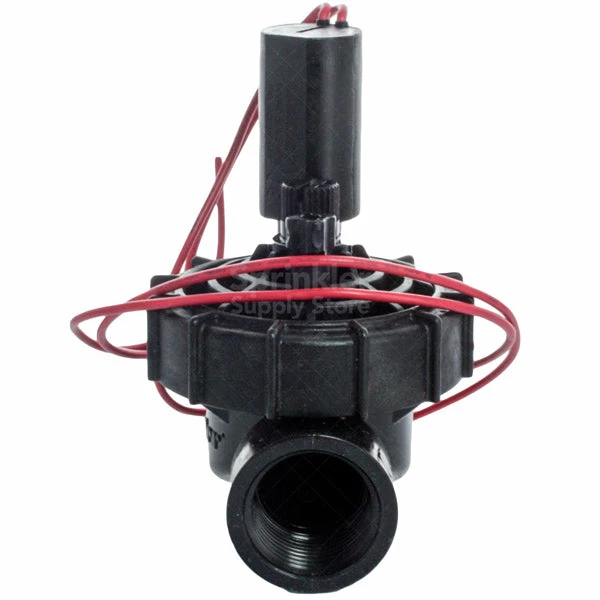

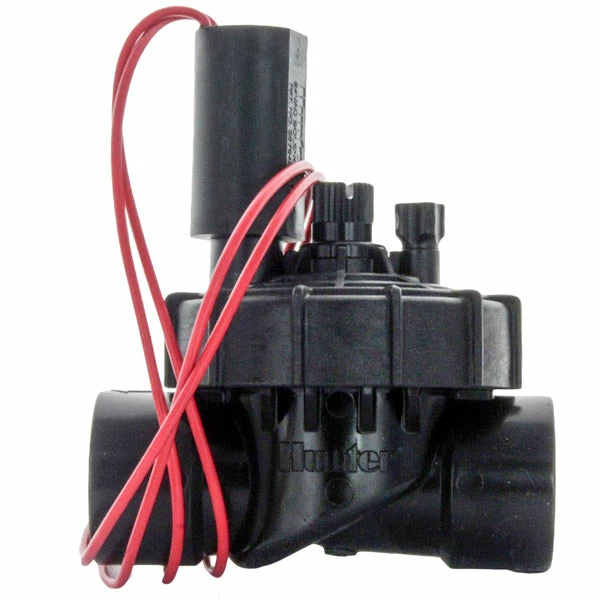

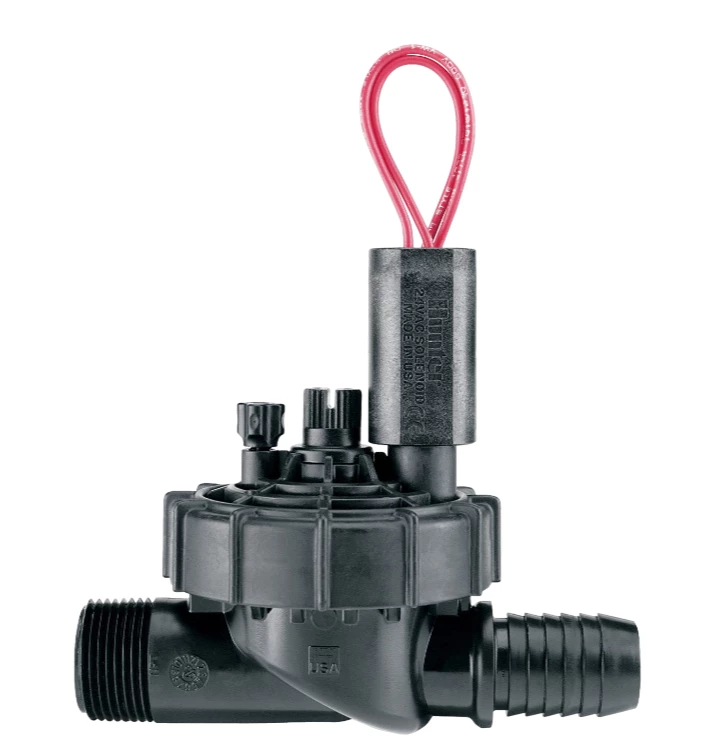

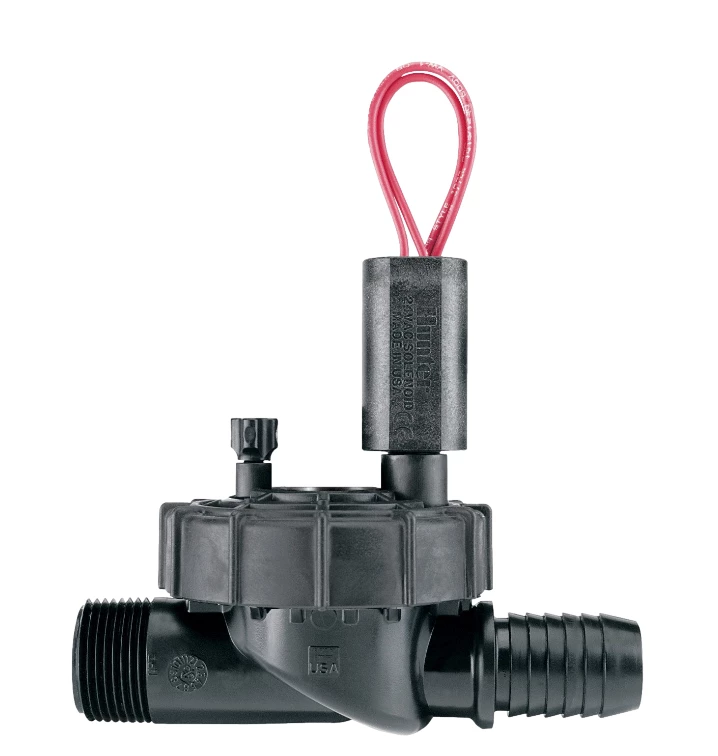

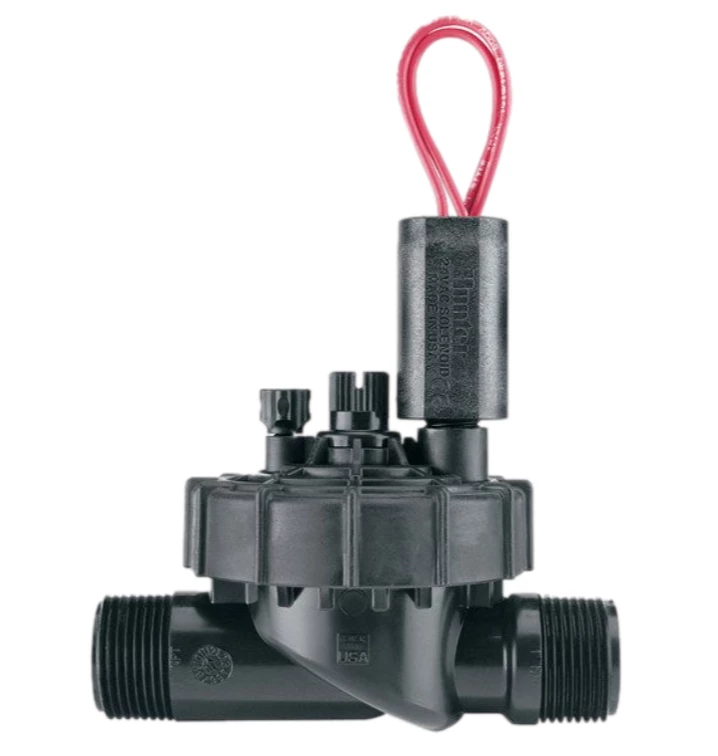

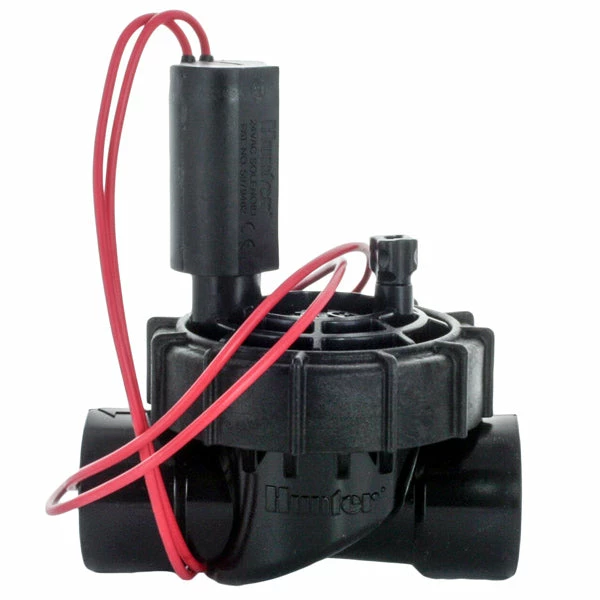

For maximum convenience, reliability, and ease of service in a residential valve, the PGV Jar Top is the solution. With the PGV Jar-Top, it’s possible to service a Hunter valve without using any tools. Even with this ease of maintenance and operational simplicity, the PGV Jar-Top still delivers quality and performance to handle the demands of any residential system. Choose from a wide range of different configurations for specific installations that vary from region to region. All models feature durable, high-grade, corrosive, and UV-resistant PVC construction, glass-reinforced jarring, and a rugged double-beaded, leak-proof diaphragm with support to prevent stress failure.
